Gas-assisted tilting cargo bed facilitates accessing the engine.

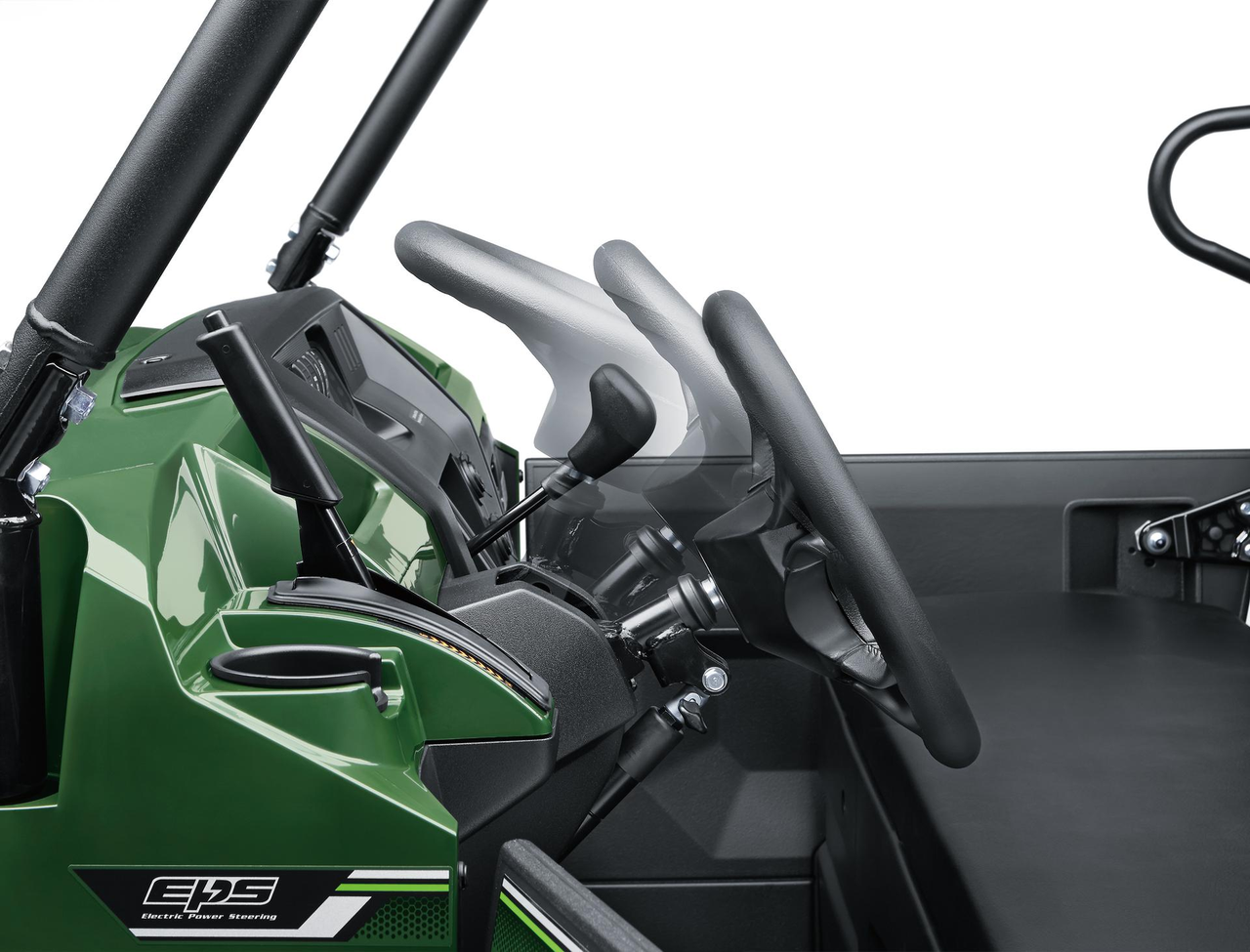

Steering wheel has a stepless adjustability range of approximately 34o, allowing drivers to set its position to suit their preference, as well as lift it out of the way to facilitate getting in and out of the vehicle.
Designed to reflect their tough construction and strong performance, the MULE PRO-DXT and PRO-DX feature rugged, no-nonsense styling similar to that found on high-quality pickup trucks.
The Trans Cab system allows the MULE PRO-DXT to be transformed from four-person to two-person mode in less than a minute. The sliding cargo wall is integrated with the cargo bed making it possible for a single person to execute the transformation.
To transform from four-person mode to two-person mode, release the seat latches and lift the cargo wall struts to disengage the cargo wall securing mechanism; fold the seat bottom out of the way; slide the cargo wall forward; lower the cargo wall struts and reattached the seat latches to secure the cargo wall.
The MULE PRO-DXT and PRO-DX combine a wide-body chassis with a 2,345 mm wheelbase. This contributes to riding stability and comfort, while offering easy operability and manoeuvrability.
The rugged frame construction of the MULE PRO-DXT and PRO-DX ensures great durability as well as superb handling.

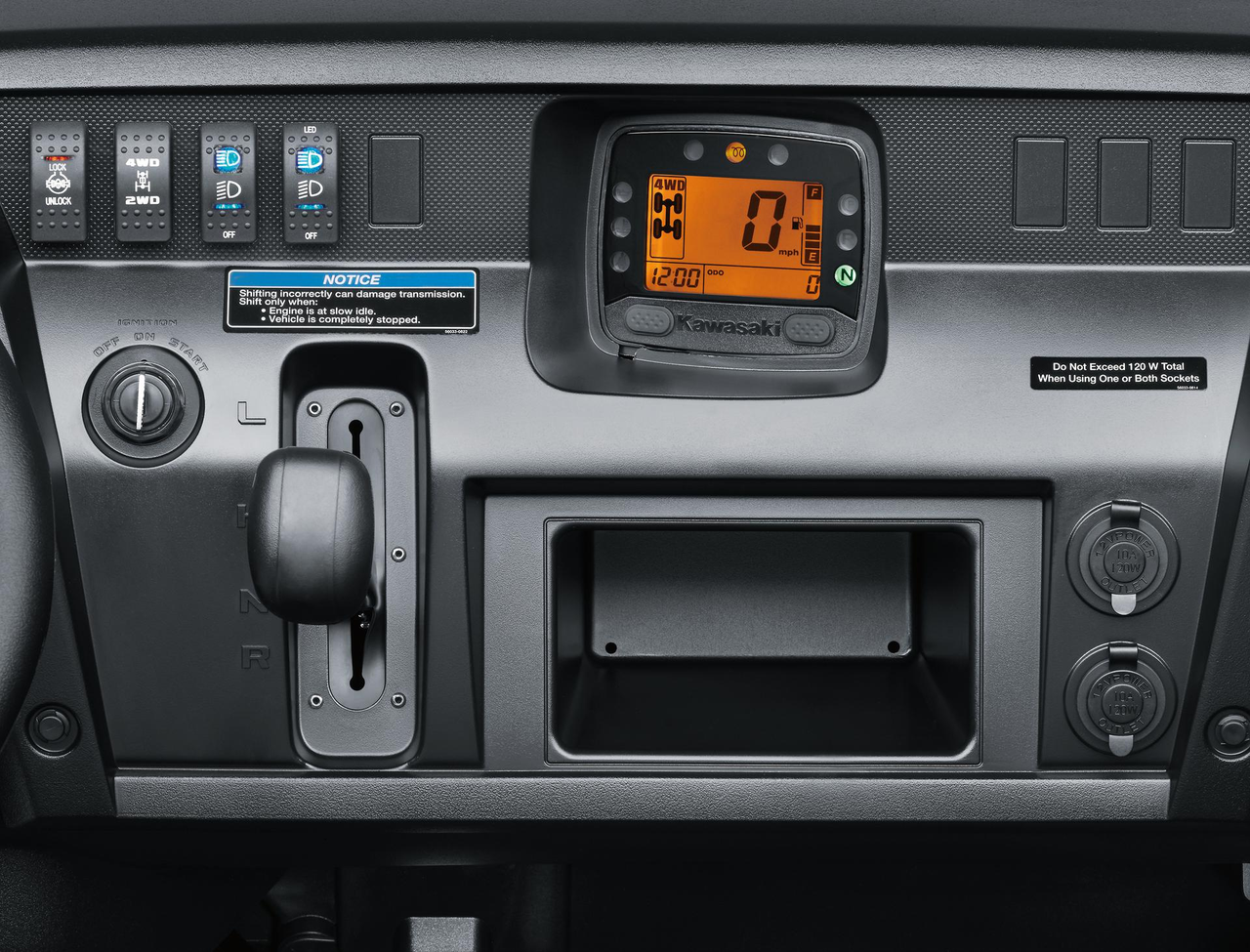

Multi-function display built into the dash is standard on all models.

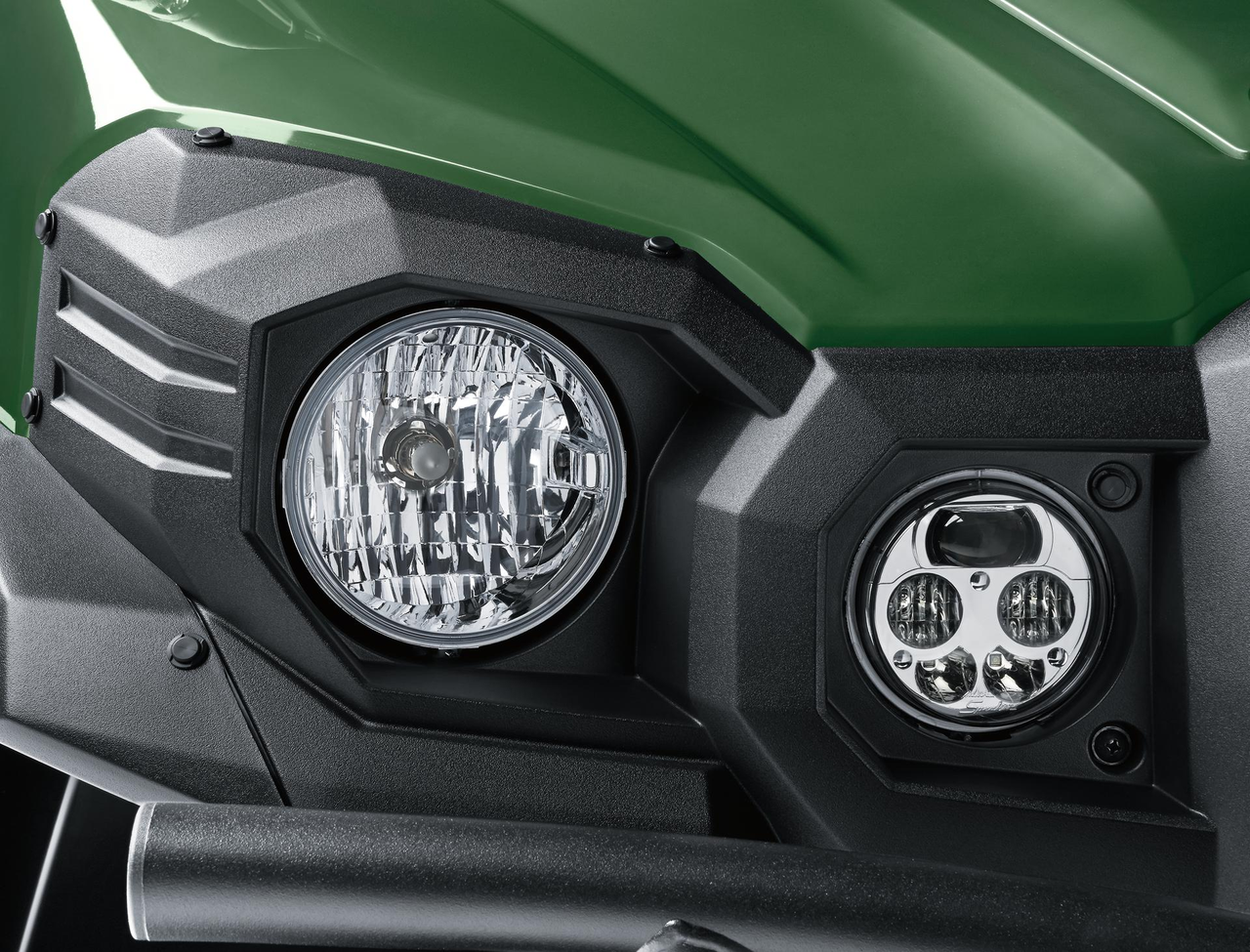

Dual 55/60 W headlights and standard LED lights cut a bright path through the dark for clear visibility on night rides.

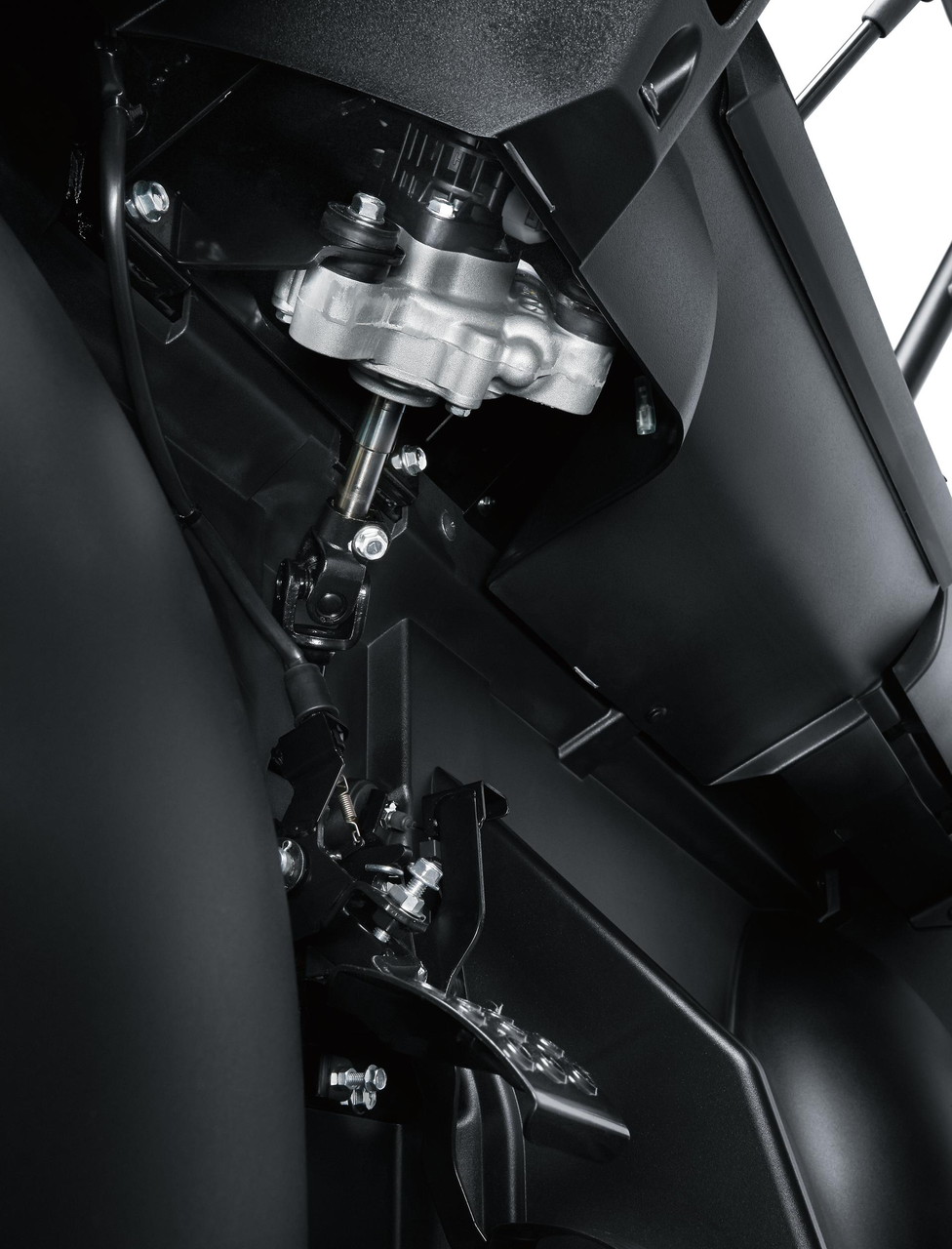

Kawasaki’s high-grade electric power steering (EPS) system works best when you need it most: at extremely slow speed and when stopped.
Electrically “selectable” 2WD/4WD and dualmode rear differential system allow easy changing between drive systems to suit changing terrain and applications.
Then slide the cargo wall forward; lower the cargo wall struts and reattached the seat latches to secure the cargo wall.

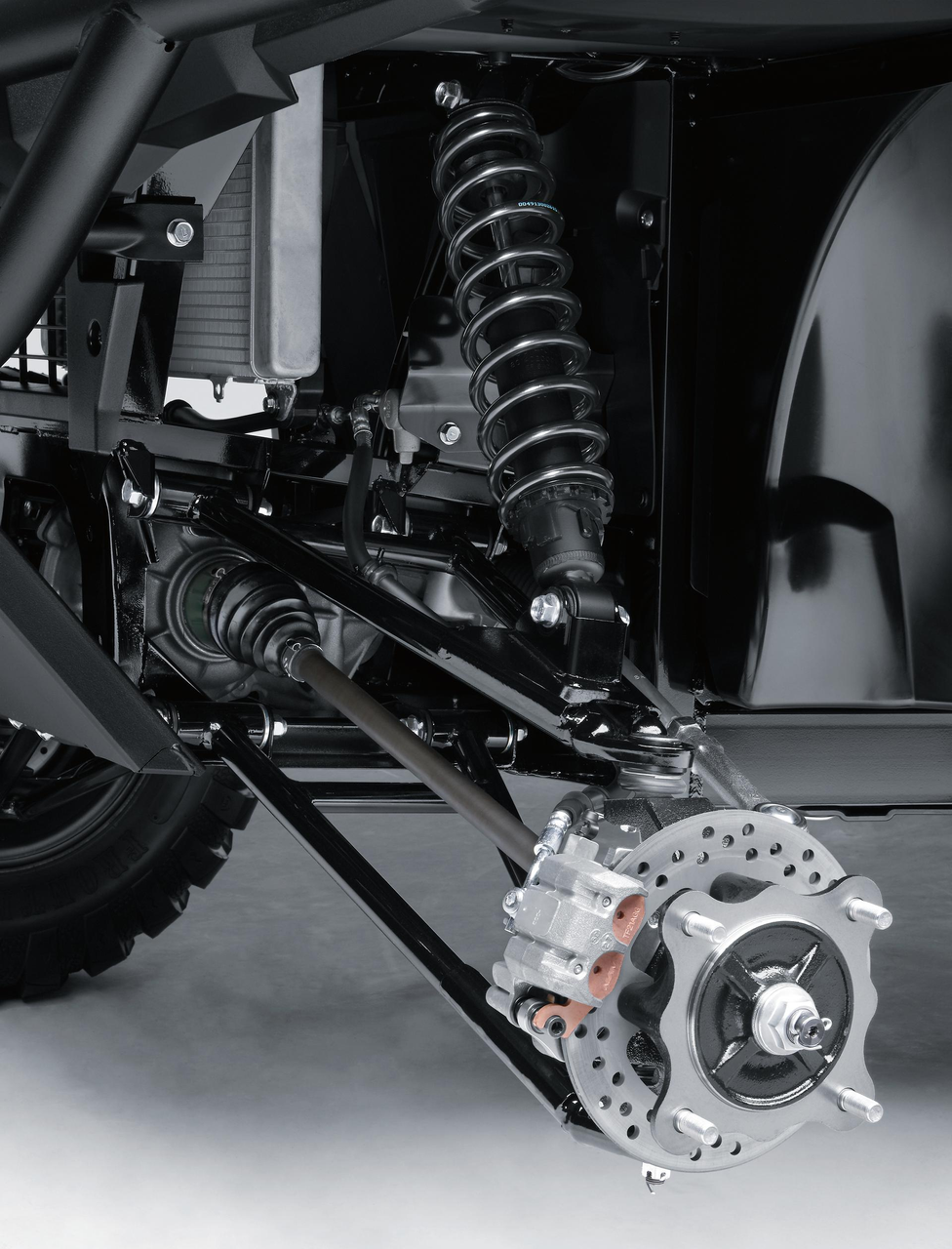

Front and rear disc brakes ensure strong, sure stopping power. The hydraulic disc system offers predictable performance, delivering brake power that matches input at the brake pedal.
Cargo bed side walls are hinged, allowing the front parts to fold out of the way when the cargo wall slides into its rearward position.
The PRO-DXT also offers a spacious cargo bed. Cargo bed dimensions are 1,085 mm L x 1,363 mm W x 279 mm H in two-person mode, 560 mm x 1,363 mm x 279 mm in four-person mode.

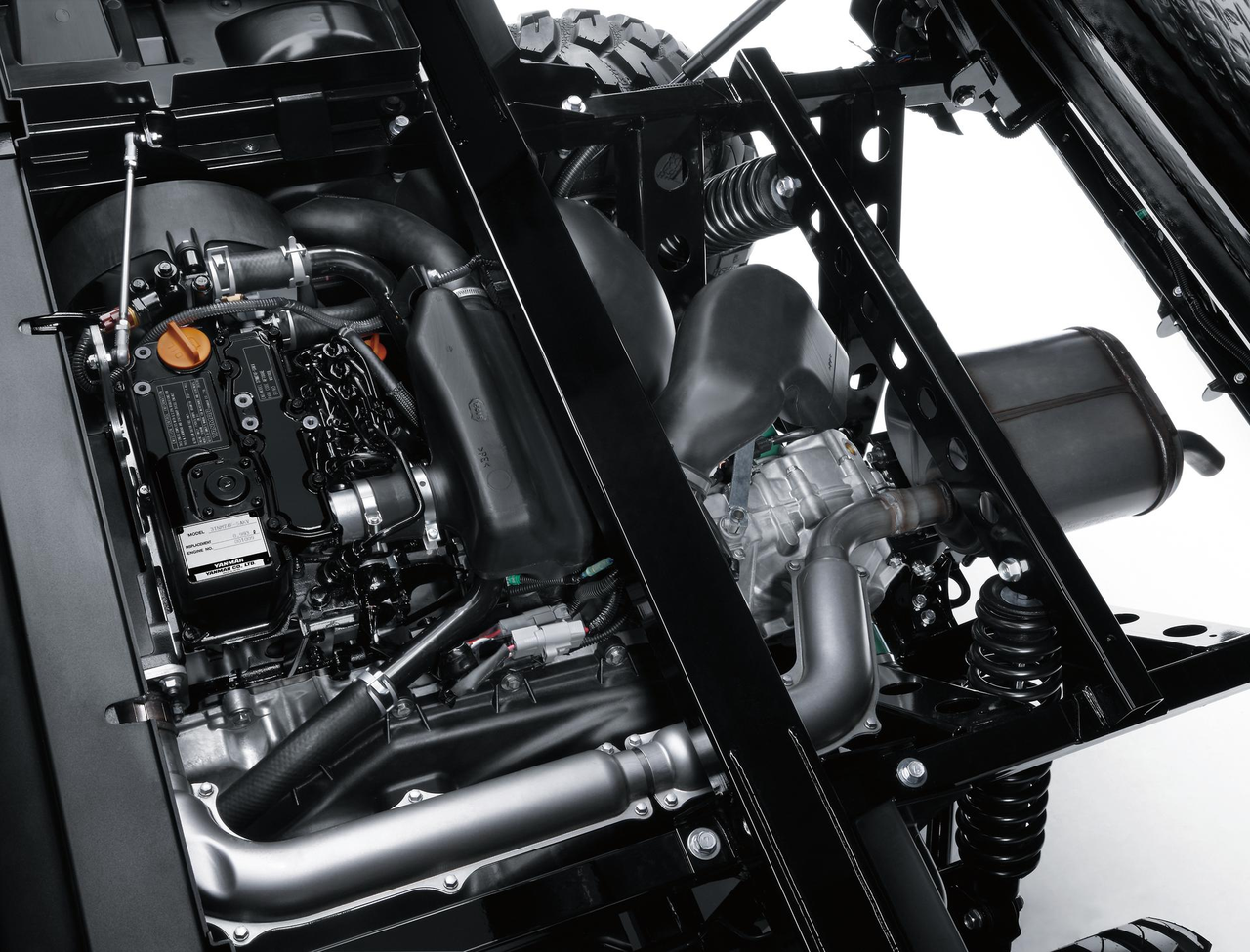

In addition to on-site fuel compatibility, the high-torque three-cylinder diesel engine of the MULE PRO-DXT and PRO-DX offers excellent performance for hauling loads, as well as easy low-speed control. Vehicle top speed is up to 30 mph.
| Tipo motore | Tre cilindri 4 tempi raffreddati a liquido |
|---|---|
| Rapporto di compressione | 23.5:1 |
| Distribuzione | OHV, 6 valves |
| Alesaggio x corsa | 74.0 x 77.0 mm |
| Cilindrata | 993 cm³ |
| Lubrificazione | Lubrificazione forzata a bagno d'olio |
| Sistema di avviamento | Elettrico |
| Potenza massima | 17.8 kW {24 PS} / 3,600 rpm |
|---|---|
| Coppia massima | 52.1 N•m {5.3 kgf•m} / 2,400 rpm |
| Trasmissione | CVT, 2 velocità automatiche, retromarcia |
| Trasmissione finale | 2WD/4WD, albero, differenziale a doppia modalità |
| Tipo di telaio | Tubolare in acciaio, a longheroni |
|---|---|
| Corsa della ruota anteriore | 222 mm |
| Corsa della ruota posteriore | 217 mm (left 217 mm , right 220 mm) - IT |
| Pneumatico, anteriore | 26 x 9.00-12 4PR |
| Pneumatico, posteriore | 26 x 11.00-12 4PR |
| L x L x A | 3,385 x 1,625 x 1,970 mm |
| Angolo di sterzata S/D | 40° / 31° (43° in - 38° out) - IT |
| Interasse | 2,345 mm |
| Altezza dal suolo | 260 mm |
| Capacità serbatoio | 30.0 litri |
| Altezza sella | 880 mm |
| Peso in ordine di marcia* | 883 kg |
| | *Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Estimated dry weight** | 848 kg |
| | **Estimated Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). |
| Freno di stazionamento | Dual discs (mechanical) |
|---|---|
| Freni, anteriori | Doppio disco |
| Tipo di pinza freno anteriore | A doppio pistone |
| Freni, posteriori | Doppio disco |
| Tipo di pinza freno posteriore | Pistone singolo |
| Sospensione, anteriore | Doppio quadrilatero |
| Sospensione, posteriore | Doppio quadrilatero |

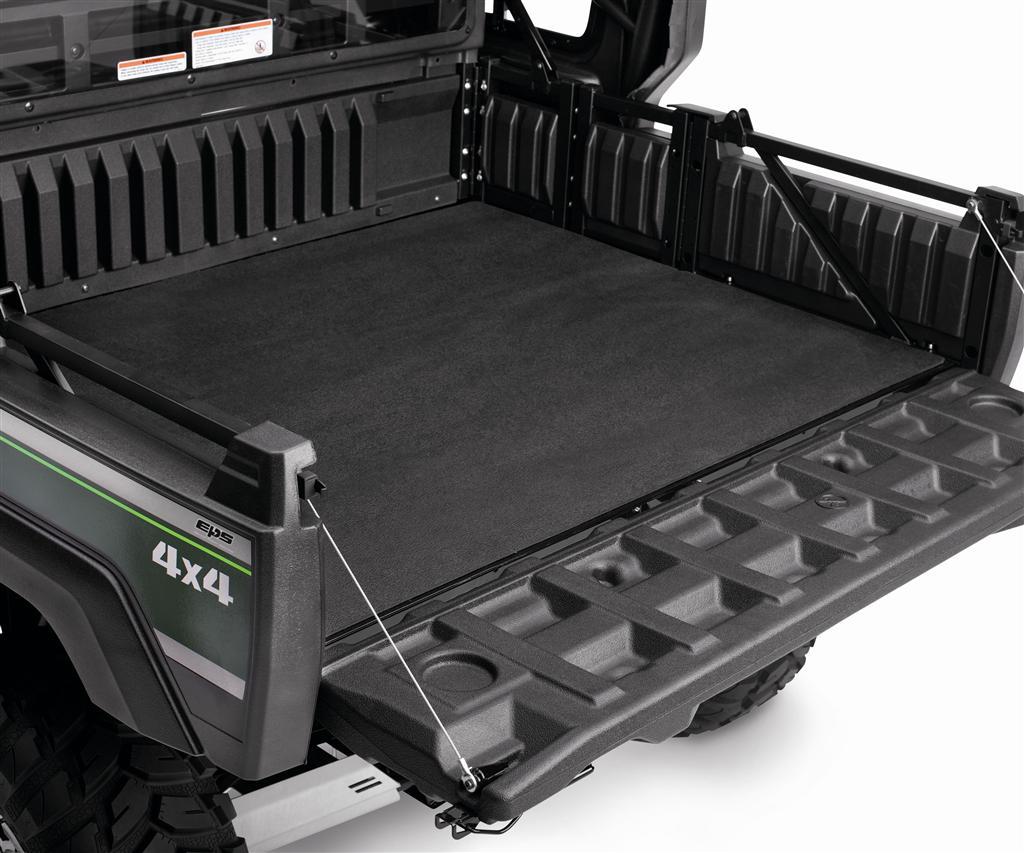

Protect your cargo bed base with these tough 3/16” (4.76mm) extra thick rubber mats.
Reduce cabin noise for occupant comfort.
A Winch Mount is required when installing a WARN ProVantage or Vantage Winch and Roller fairlead to your vehicle.
Increase bottoming resistance when carrying a heavy load and/or when using heavy accessories such as a Hard Cabin.
Part Number: 022CAT0044 – Wiper Set for MULE PRO-DX/DXT.
Modular Parts:
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Secure, easy-to-access storage for the trail or job site.
Fuse Kit with automotive standard compliant relay. Hook up your accessories to this relay instead of directly to the battery.
Part Number: 022CAT0045 – Washer Set for MULE PRO-DX/DXT.
Modular Parts:
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Supplied as a pair (front) with all fixings included, these hardwearing -SBR*- mats feature a honeycomb surface design to ensure high levels of grip in all conditions, model specific full coverage fitment and Mule logos. Due to their nature of rubber, they can reduce noise levels.
*SBR: styrene-butadiene rubber
Metal Bracket with EU Tow Ball to fit into the Vehicle.
Complete windscreen kit for Kawasaki Mule DX with windscreen wiper and washer system. Provides optimum visibility when driving in rain, snow, and dirty conditions.
Package:
022CAT0043A: Windscreen + Wiper + Washer
Modular Parts:
Image shown is 022CAT0020A– MULE PRO-DX Hard Cabin Kit with Doors with Sliding Windows.
Part Number: 42S08U01S02 – Heater Assembly for MULE PRO-DX/DXT.
Modular Parts:
Maximize cargo space with this durable, black-finished plastic bed extender—designed to latch securely and work seamlessly with your vehicle.
3D curved safety glass provides increased field of view
Can also be used in combination with the Hard Cabin for Mule Pro-MX and Mule SX. Unfortunately not in combination with the Mule Pro-DX & DXT hard cabin, with roof.
3D curved safety glass provides increased field of view.
Can also be used in combination with the Hard Cabin for MULE PRO-MX and MULE SX.
Not compatible with the MULE PRO-DX & DXT Hard Cabin with Roof.
